Hemodialysis Machines

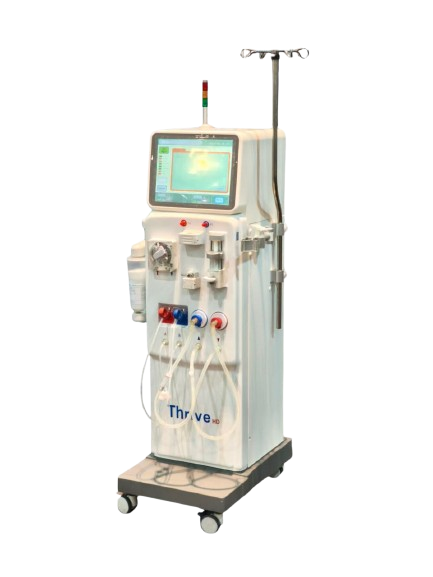

ThriveHD Hemodialysis Machine
The ThriveHD Hemodialysis Machine is indicated for acute and chronic hemodialysis therapy. This hemodialysis machine used for dialysis treatment for adult patients with chronic renal failure in dialysis centers, hospital and renal care departments.
Model: TW-T2008-B
Features
- Online BPM and Kt/V
- Bi-cart Bicarbonate holder
- Endotoxin filter -- Dialysis fluid filter system
- LCD touch screen | Balance chamber + UF pump
- UF control system with sealed double volume balancing chamber
- 8 kinds of UF profiling to meet different clinical application requirements
- Standby battery - The standby battery can supply power for 30 minutes
Technical Information
- Size: 380mm×400mm×1380mm (L*W*H)
- Floor Area: 500*520 mm
- Weight: 88KG
- Power Supply AC220V, 50Hz / 60Hz, 10A
- Input power: 1500W
- Back-up battery: 30 minutes
- Water input pressure: 21.75 P.S.I. ～87 P.S.I.
- Water input temperature: 10℃～30
- Working environment: temperature 10ºC 30ºC at relative humidity of no more than 70%
Disinfection/Sanitize
Hot disinfection
Time: 20 minutes, Temperature: 30~80℃, Flow rate: 500ml/min.
Chemical disinfection
Time: 30 minutes, Temperature: 36~50℃, Flow rate: 500ml/min.
Chemical Heat disinfection
Time: 45 minutes, Temperature: 36~80℃, Flow rate: 50ml/min.
Rinse
Time: 10 minutes, Temperature: 37℃, Flow rate: 800ml/min.
